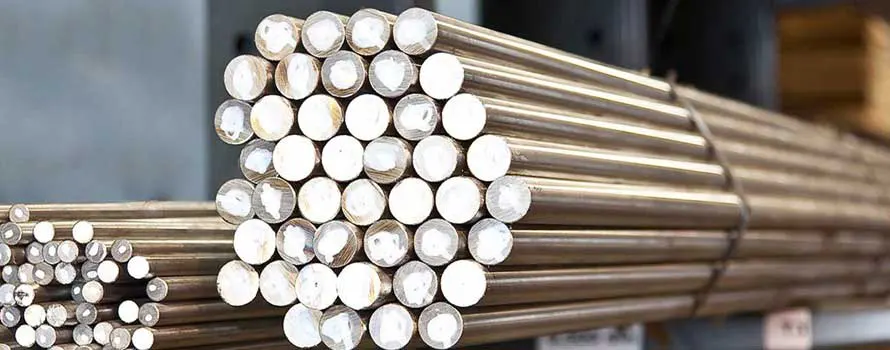

Round Bright Bars
Maksteel supplies a very high quality stainless steel bars with precise tolerance as per customer's requirments which is used for OEM's for machining components.
| Size range | 4.76 mm-100 mm(3/16 inches to 4 inches) |
| Size Tolerances | h9, h10, h11, k12, k13 |
| Length | Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet |
| Chamfering | Available in 30° , 45° & 60° |
| Length Tolerance | Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch) |
| Straightness | Up to 0.50 mm/metre |
| Surface Finish | Drawn & polished, Centerless Ground Bar, Peeled & Polished, Smooth Turned |
| Heat Treatment | Annealed, Solution Annealed, Quenched & Tempered (QT) |

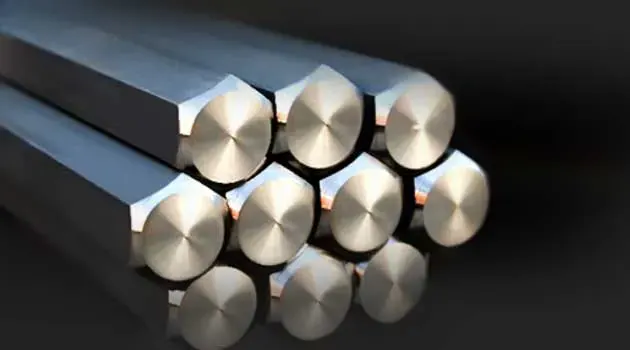

Hexagonal Bars
Maksteel supplies high quality stainless steel hexagonal bars in stainless steel grades 201, 304/304L, 316/316L and 303. The bright hex bar is flexible to use in different manufacturing application due to its high strength and corrosion resistance durability. Our stainless steel hex bar is used in the manufacturing of nuts, valves, hose ends, fasteners and hex bolts.
| Size Range | 12 mm to 55mm (1/2" to 2-1/4") |
| Size Tolerance | h11 |
| Length | Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet |
| Length Tolerance | Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch) |
| Chamfering | Available in 30° , 45° & 60° . Plain cut ends free from burrs. |
| Straightness | 1 mm/meter |
| Surface Finish | Shot Blasted & Cold Drawn or Belt Polish |
| Heat Treatment | Solution Annealed |

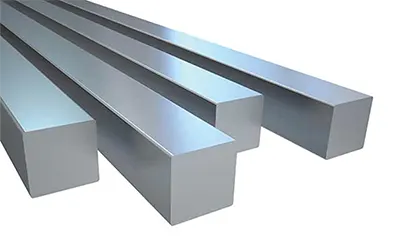

Square Bars
Maksteel has a range of stainless steel square bars in Austenitic grades. Our stainless steel square bars are used for some very high end applications like aerospace, pressure guages, temperature sensors, load cells etc. We ensure the accuracy of across flat and corner radius can be maintained as per customer's requirements. Square bars are produced by two ways depending on the application like drawn and polished square bars used for decorative application and shot blasted and cold drawn for critical applications.
| Size Range | 12mm to 55mm (1/2" to 2-1/4") |
| Size Tolerance | h11 |
| Length | Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet |
| Length Tolerance | Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch) |
| Chamfering | Available in 30° , 45° & 60° . Plain cut ends free from burrs. |
| Straightness | 1mm/meter |
| Surface Finish | Shot Blasted & Cold Drawn or Belt Polish |
| Heat Treatment | Solution Annealed |
