Maksteel Wire Healds Pvt. Ltd. is a leading Textile Weaving Machine Accessories Manufacturer in India. Maksteel has made rapid progress in the area of Jacquard Harness and parts for types of jacquard machines and suitable for all types of looms like Rapier, Air Jet, Water Jet and Label Looms.
The company successfully supplies its products in India and 22 countries over the world.

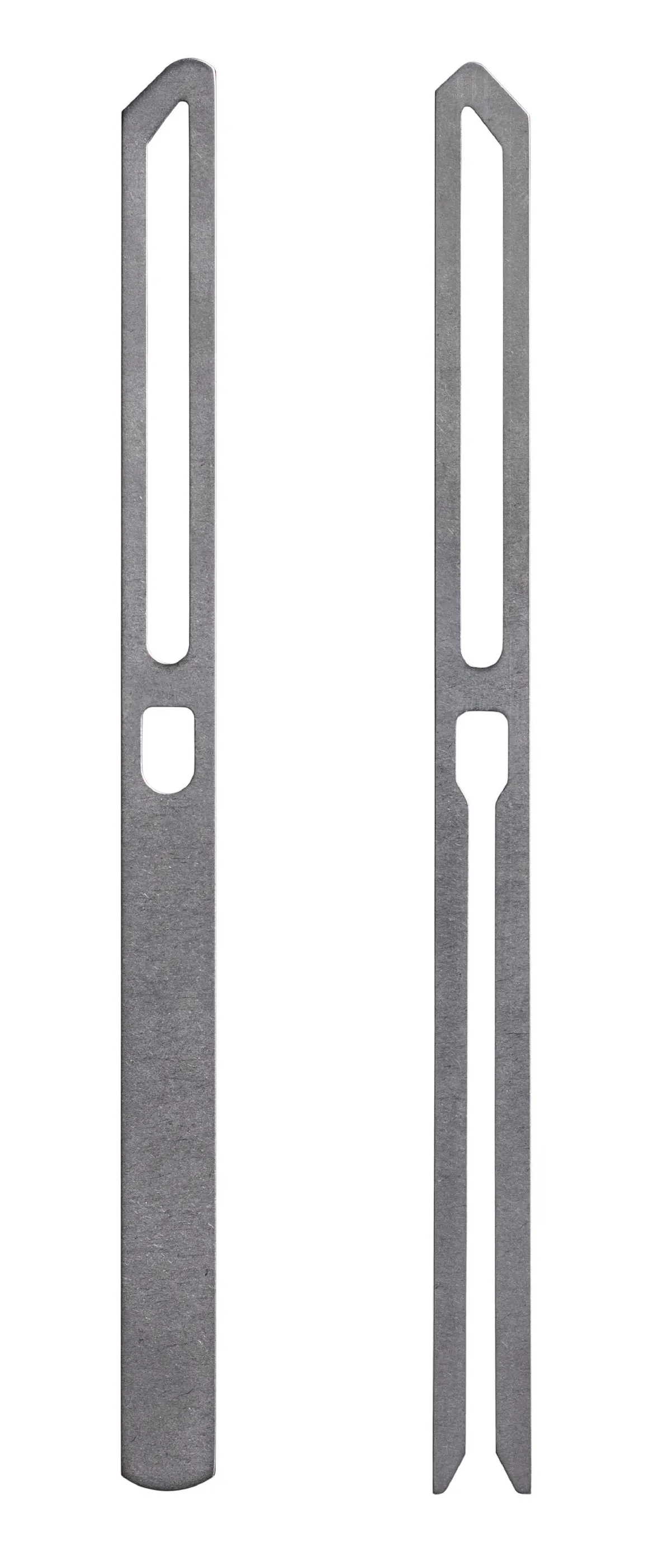

Drop wires Available in Stainless Stell, Zinc Plated, Nickel Plated and Copper Plated.
| Weight, Dimension & Thickness of Drop Wires | ||||
|---|---|---|---|---|
| Dimension in mm | Weight in Grams | |||
| Length | Width | Thickness | Closed Bottom | Open Bottom |
| 145 | 8.7 | 0.2 | 1.3 | 1.2 |
| 0.3 | 2.1 | 2 | ||
| 11 | 0.2 | 1.9 | 1.7 | |
| 0.25 | 2.4 | 2.1 | ||
| 0.3 | 2.8 | 2.5 | ||
| 0.4 | 3.8 | 3.3 | ||
| 0.5 | 4.7 | 4.2 | ||
| 156 | 11 | 0.2 | 2.1 | 1.8 |
| 0.25 | 2.7 | 2.2 | ||
| 0.3 | 3.2 | 2.7 | ||
| 0.4 | 4.3 | 3.6 | ||
| 0.5 | 5.3 | 4.7 | ||
| 165 | 11 | 0.2 | 2.2 | 1.9 |
| 0.3 | 3.3 | 2.9 | ||
| 0.4 | 4.4 | 3.9 | ||
| 0.5 | 5.5 | 4.8 | ||
| 180 | 11 | 0.3 | 3.7 | 3.3 |
| 0.4 | 4.9 | 4.4 | ||
| 0.5 | 6.2 | 5.5 | ||

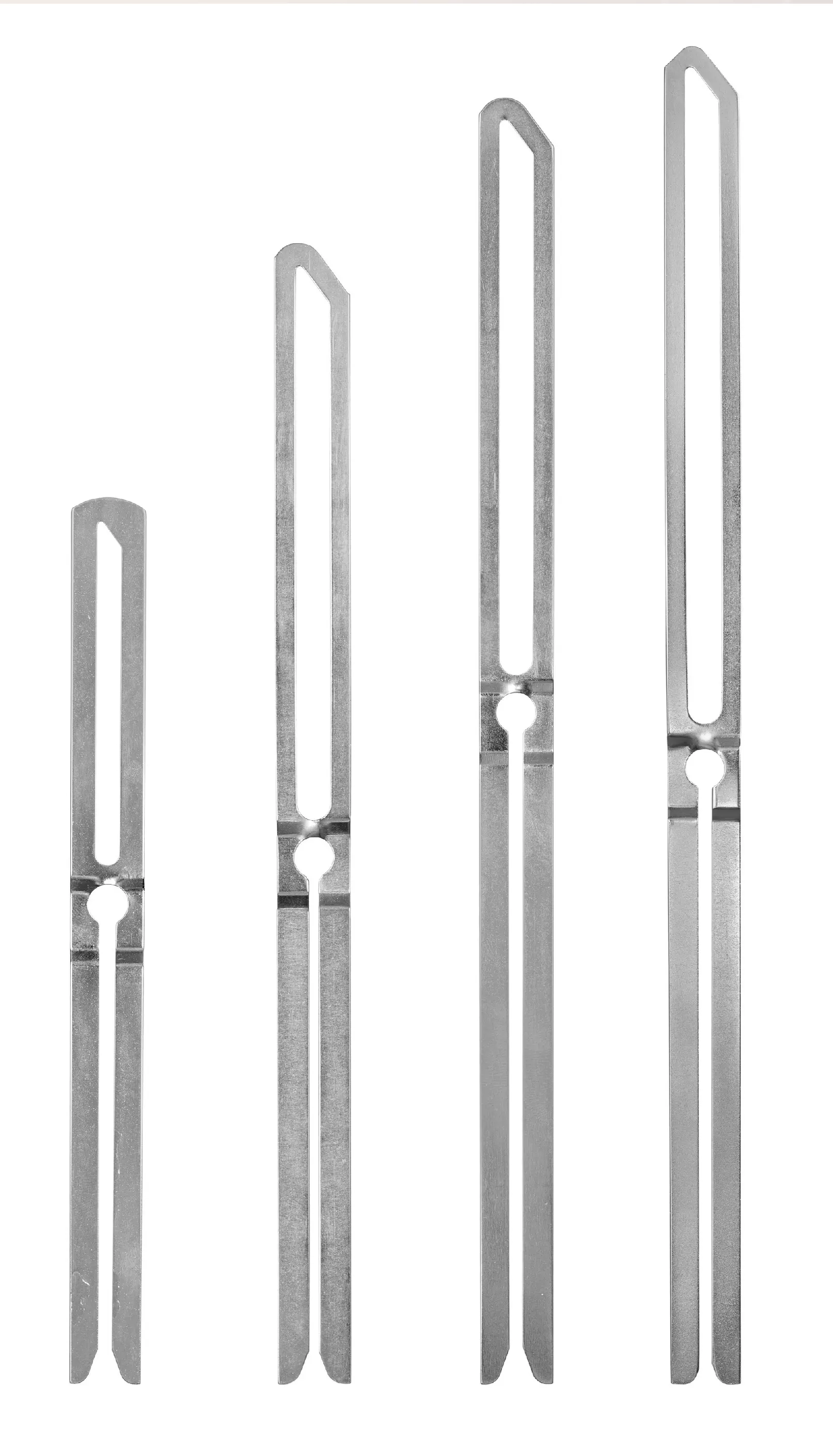

Drop Wire for Carpet Weaving
| Weight, Dimension & Thickness of Drop Wires | ||||
|---|---|---|---|---|
| Length | Width | Thickness | Weight in Grams | |
| 177 | 15 | 0.5 | 7.6 | |
| 177 | 15 | 0.7 | 10.6 | |
| 228 | 15 | 0.7 | 12.6 | |
| 258 | 15 | 0.5 | 10.6 | |
| 268 | 15 | 0.7 | 14.8 | |
Drop wires Available in Stainless Steel, Zinc Plated, Nickel Plated and Copper Plated.
