Maksteel being very focused in quality, now produce their own raw materials. In this way Maksteel has entered into a wide field of Stainless steel industry in 2014 as a part of backward integration. Maksteel exports their stainless steel products across Europe and Asia since 2014. With this development, they can now provide the customers with a wider range of products.

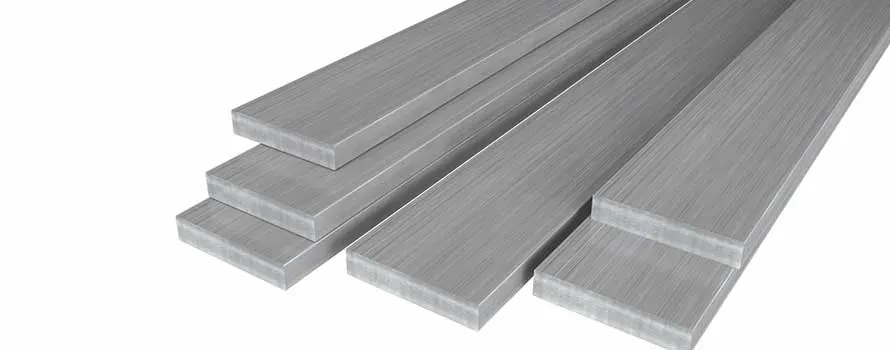

HRAP Flat Bars
Maksteel has a range of HRAP (True Mill Bars) Flat Bars. Our flat bars are of high strength as compared to slitted flat bars. It is used in construction and for high strength applications. The Flat Bars are produced by two ways HRAP and shot blasted and HRAP and belt polish for decorative applications.
| Size Tolerances | ASTM A484 |
| Length | Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet |
| Length Tolerance | Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch) |
| Straightness | 1mm/meter |
| Surface Finish | Hot Rolled Annealed Pickled & Shot Blasted |
| Heat Treatment | Solution Annealed |
| Size | Thickness |
|---|---|
| 25 MM (1") | 5 mm to 12 mm (1/8" - 1/2") |
| 30 MM (1 -3/16") | 5 mm to 12 mm (1/8" - 1/2") |
| 32 MM (1-1/4") | 5 mm to 12 mm (1/8" - 1/2") |
| 35 MM (1-3/8") | 5 mm to 12 mm (1/8" - 1/2") |
| 40 MM ( 1-4/7") | 5 mm to 25 mm (1/8" - 1") |
| 45 MM (1-7/9") | 5 mm to 25 mm (1/8" - 1") |
| 50 MM (2") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 55 MM (2-1/16") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 60 MM ( 2-3/8") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 65 MM ( 2-5/9") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 70 MM (2-3/4") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 75 MM (3") | 5 mm to 50 mm (1/8" - 2") |
| 80 MM ( 3-1/8") | 5 mm to 30 mm (1/8" - 1-3/16") |
| 90 MM (3-1/2" | 5 mm to 30 mm (1/8" - 1-3/16") |
| 100 MM (4") | 5 mm to 50 mm (1/8" - 2") |

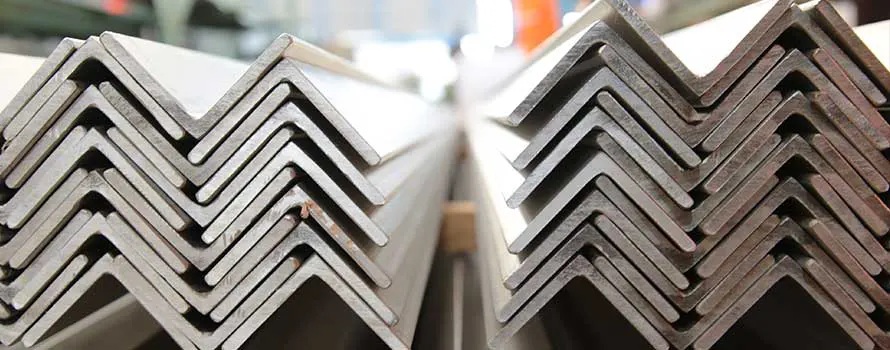

HRAP Angles
Maksteel has a range of high strength stainless steel HRAP Angles. Due to its high strength our angles are widely used in construction and structurals.
| Size Tolerances | ASTM A484 |
| Length | Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet |
| Length Tolerance | Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch) |
| Straightness | 1mm/meter |
| Surface Finish | Hot Rolled Annealed Pickled & Shot Blasted |
| Heat Treatment | Solution Annealed |
| SIZE | THICKNESS |
|---|---|
| 20X20 ( 4/5" X 4/5") | 3 (1/8") |
| 25X25 (1" X 1") | 3, 4, 5, 6 (1/8", 1/6", 3/16" , 1/4") |
| 30X30 ( 1-1/6"X1-1/6") | 3, 4, 5 (1/8", 1/6", 3/16") |
| 32X32 (1-1/4"X1-1/4") | 3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4") |
| 35X35(1-3/8"X1-3/8") | 3, 4, 5 (1/8", 1/6", 3/16") |
| 38.1X38.1(1-1/2"X1-1/2") | 3.17, 4.76, 6.35 (1/8", 3/16", 1/4") |
| 40X40(1-4/7"X1-4/7") | 3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4") |
| 45X45(1-7/9"X1-7/9") | 3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4") |
| 50X50(2"X2") | 3, 4 , 5, 6,9.52 (1/8", 1/6", 3/16", 1/4",3/8") |
| 60 X 60 (2-3/8" X 2-3/8") | 5, 6,7,8 (3/16", 1/4") |
| 63 X 63 (2-1/2" X 2-1/2") | 5, 6,9.52 (3/16", 1/4",3/8") |
| 65 X 65 (2-5/9" X 2-5/9") | 5, 6,7,8 (3/16", 1/4") |
| 70 X 70 (2-3/4" X 2-3/4") | 6, 7, 8, 9, 10 (1/4", 9/32", 5/16", 3/8",2/5") |
| 75 X 75 (3" X3") | 6,7,8,9,10,12 (1/4",9/32",5/16",3/8",2/5",1/2") |
